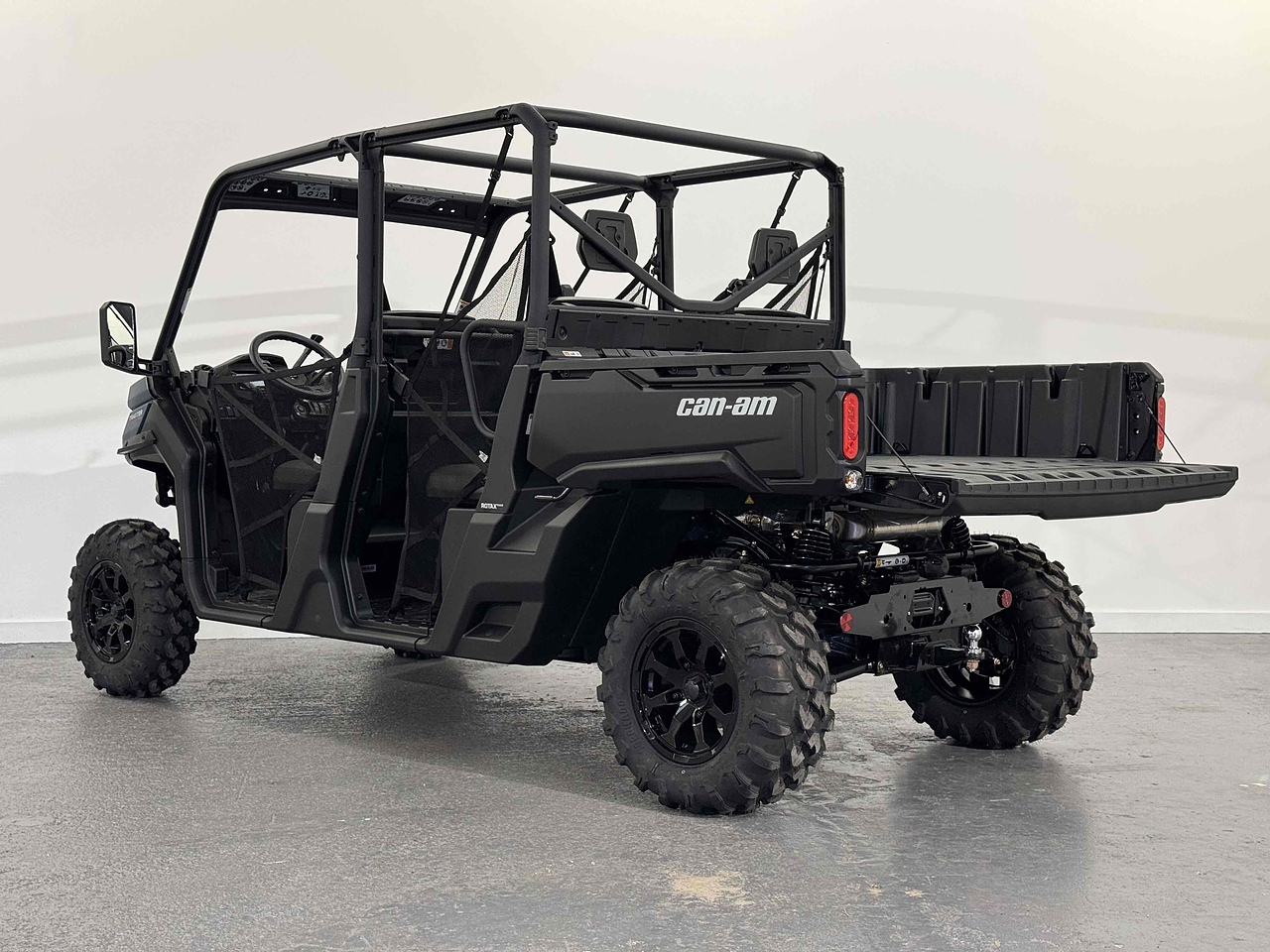

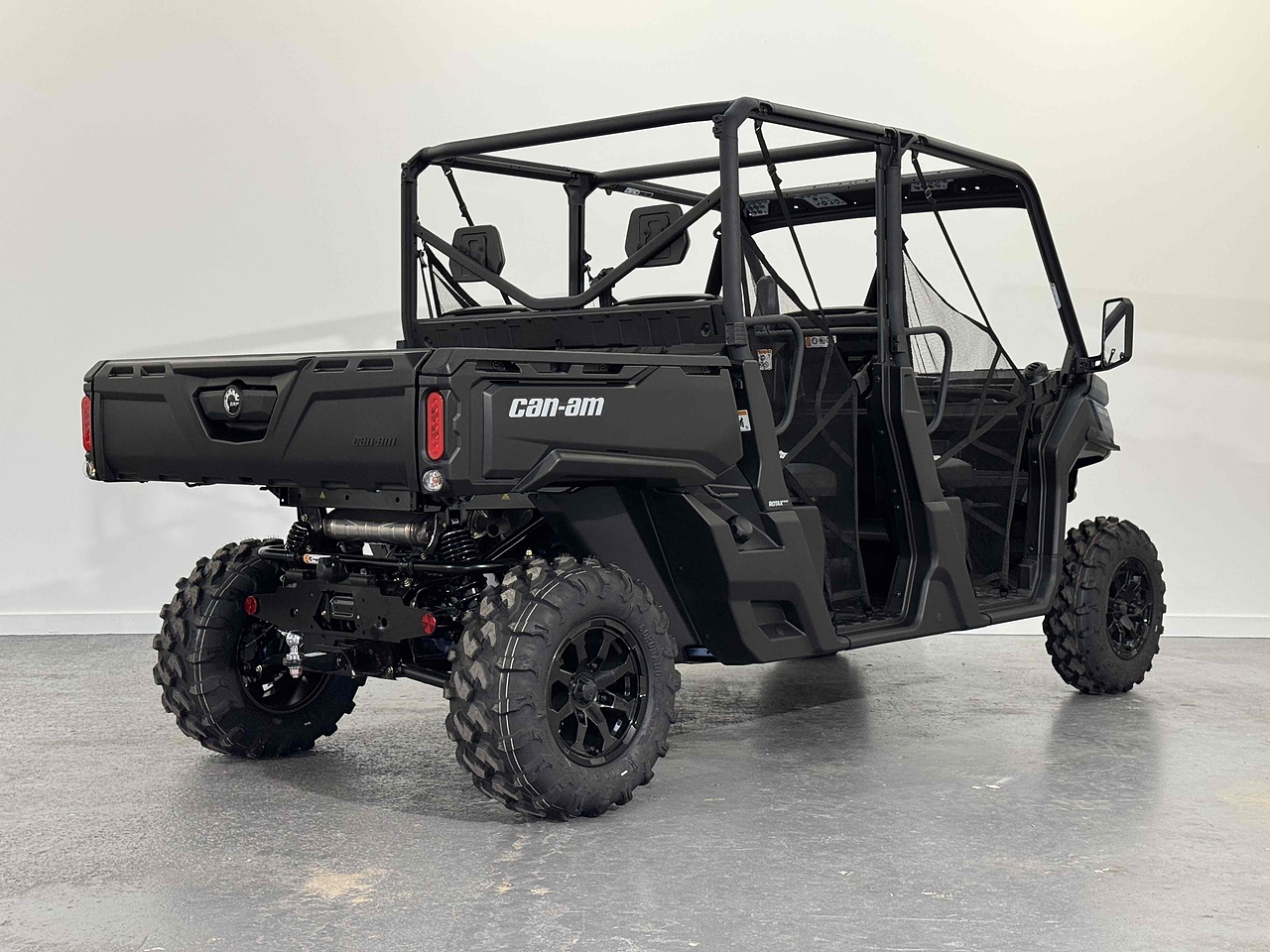

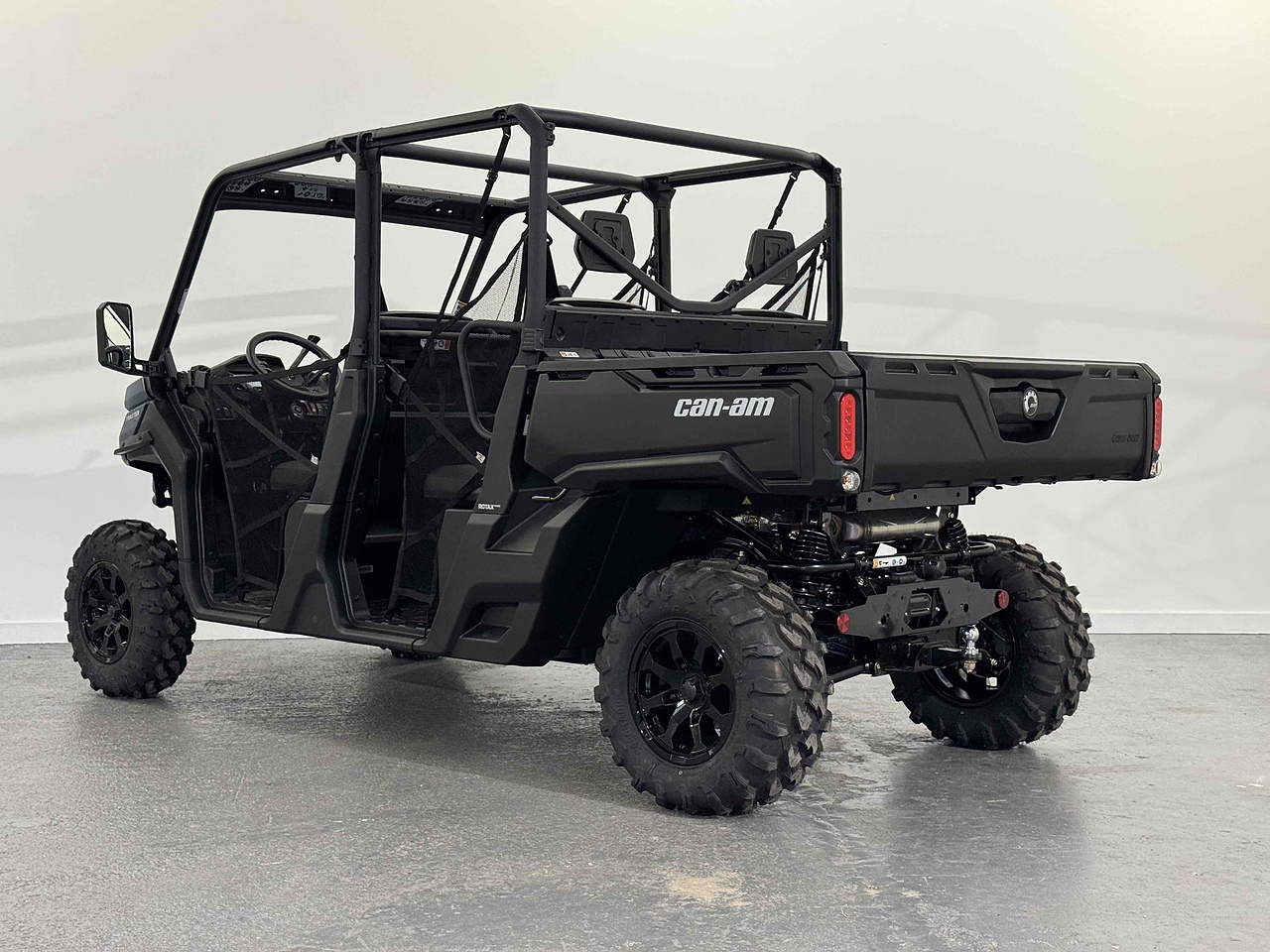

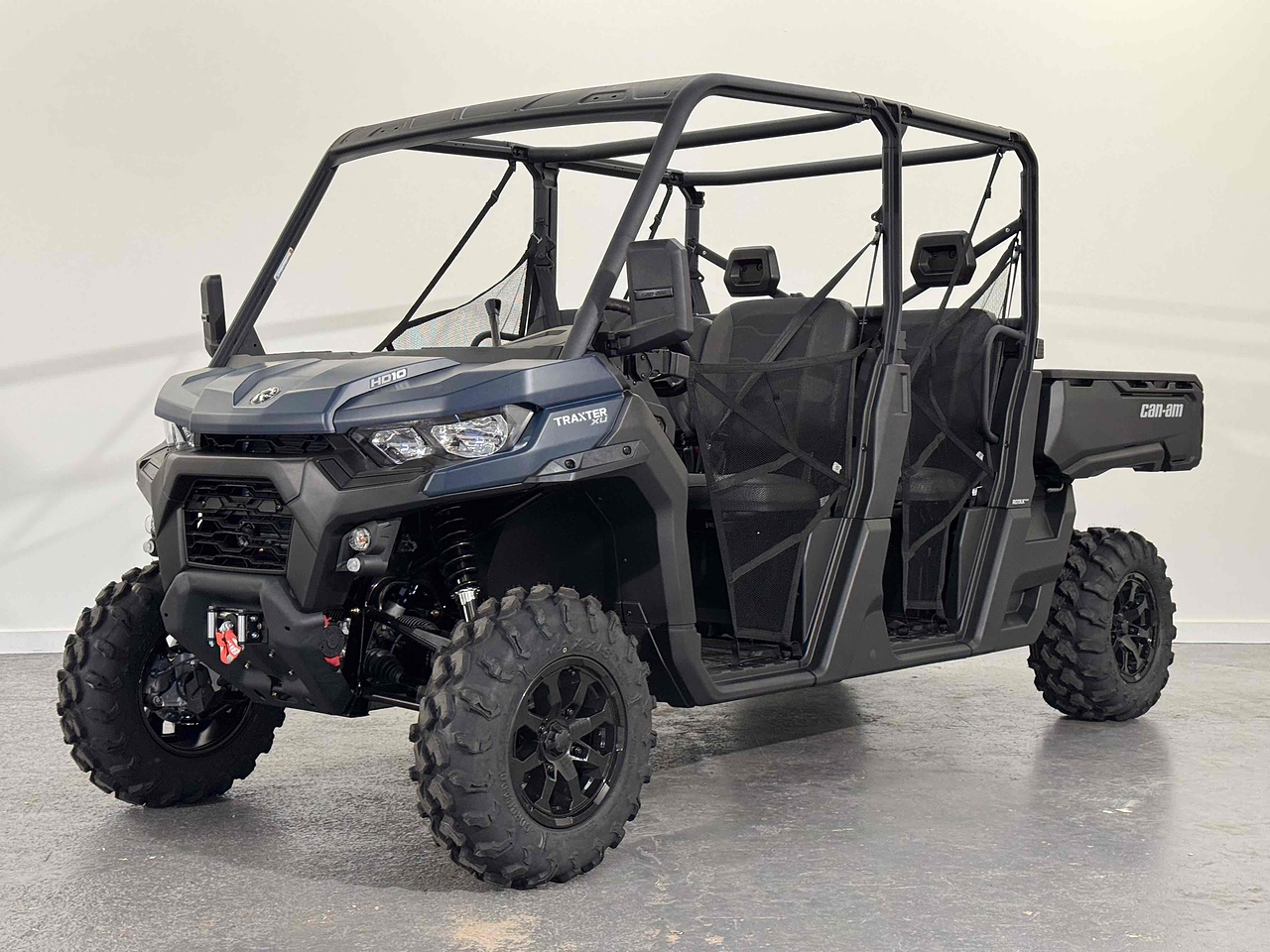

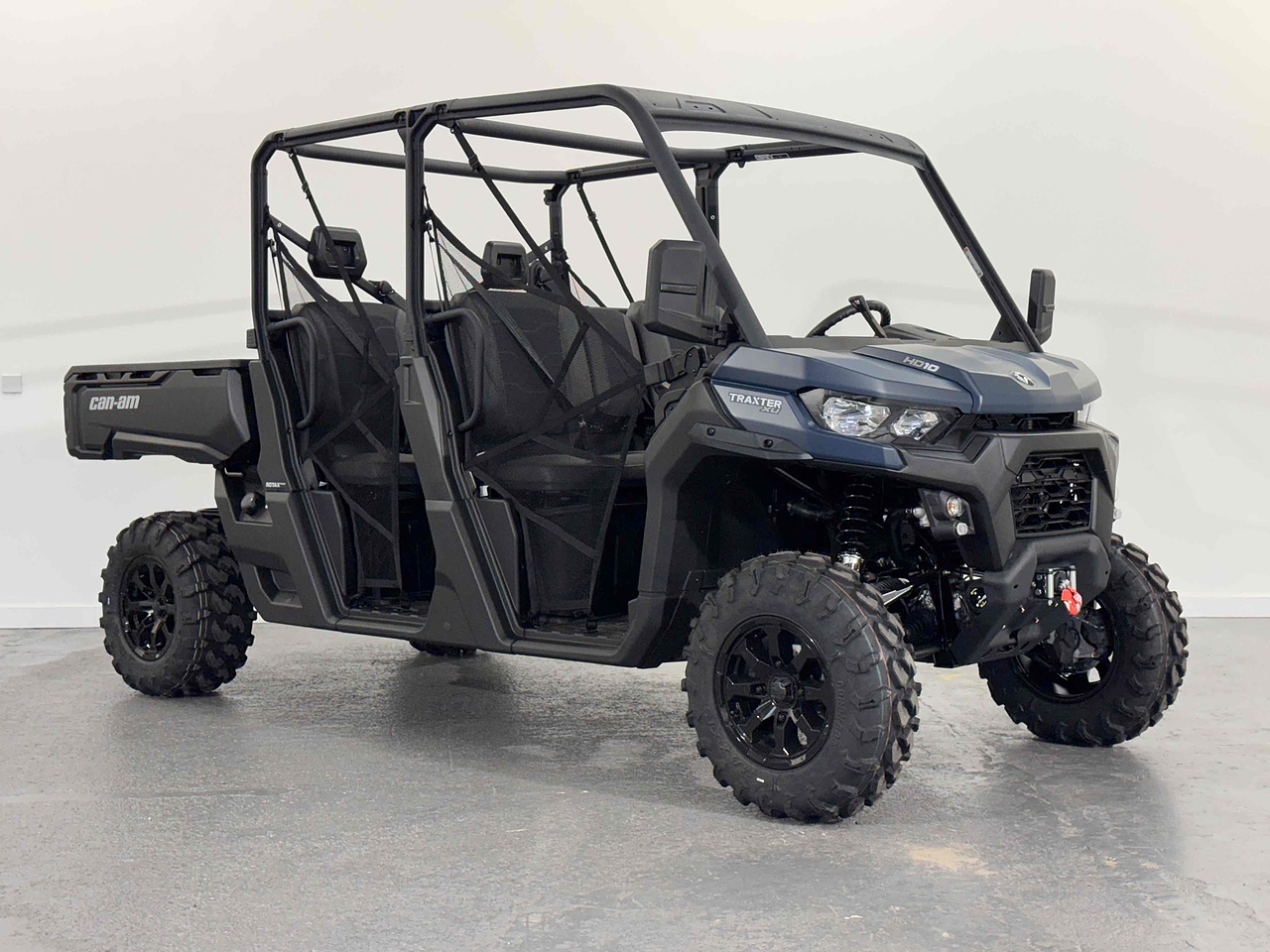

Can-Am Traxter MAX

Finance Options Available for Individuals and Businesses

Equipped to get it done. Traxter MAX XU is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires. Add some LinQ accessories and you’ll be working smarter in no time. LinQ gives you room to pack more tools and carry more cargo. Easy on, easy off.

Package Highlights
• Dynamic Power Steering (DPS)
• Full heater
• 4,500 lb (2,041 kg) winch with roller fairlead
• RF key DESS with Start / Stop button
• Evap system ready (CARB)
• Horn with turning signal lever
• Flashers and position lamps
• Left and right sides EC approved mirrors
• Hook on front metal bumper
• Adjustable Speed limiter
• ABS system

ENGINE: HD10
Type: 82 hp / 69 lb-ft, Rotax 976 cc, V-twin, liquid cooled, catalytic converter
Fuel Delivery System: Intelligent Throttle Control (iTC) with Electronic Fuel Injection (EFI)
Transmission: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P
Drive Train: Selectable Turf Mode / 2WD / 4WD with open front differential with ABS system Driving Assistance: Electronic Hill Descent Control, ECO™ / ECO™ Off / Work modes, Speed Limiter
Power Steering: Dynamic Power Steering (DPS)

SUSPENSIONS
Front Suspension: Arched double A-arm / 11 in. (27.9 cm) suspension travel
Front Shocks: Twin tube gas charged shocks
Rear Suspension: Arched TTA with external sway bar / 11 in. (27.9 cm) suspension travel
Rear Shocks: Twin tube gas charged shocks

TIRES / WHEELS

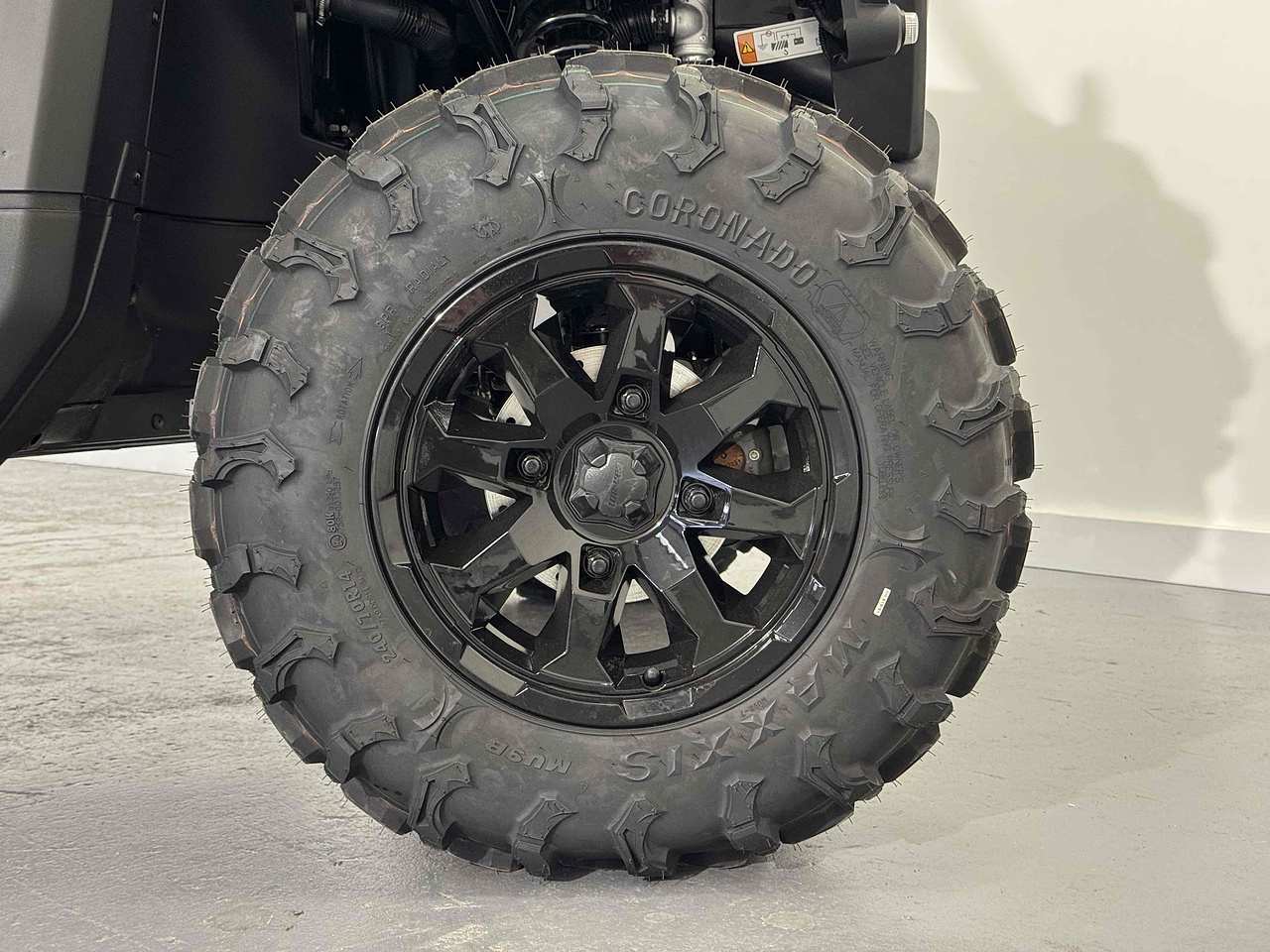

Front / Rear Tires: Maxxis Coronado 2.0 27 x 9/11 x 14 in.
Wheels: 14 in. cast-aluminum

BRAKES
Front: Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear: Dual 220 mm disc brakes with hydraulic twin-piston calipers
Others: Brake holding mechanism

DIMENSIONS / CAPACITIES
Cage: Profiled cage. ROPS approved
Estimated Dry Weight: 1,862 lb ( 845 kg)
L x W x H: 153.4 x 64 x 77.5 in. (389.6 x 162.5 x x 196.9 cm)
Wheelbase: 115.5 in. (294 cm)
Ground Clearance: 12.5 in. (31.8 cm)

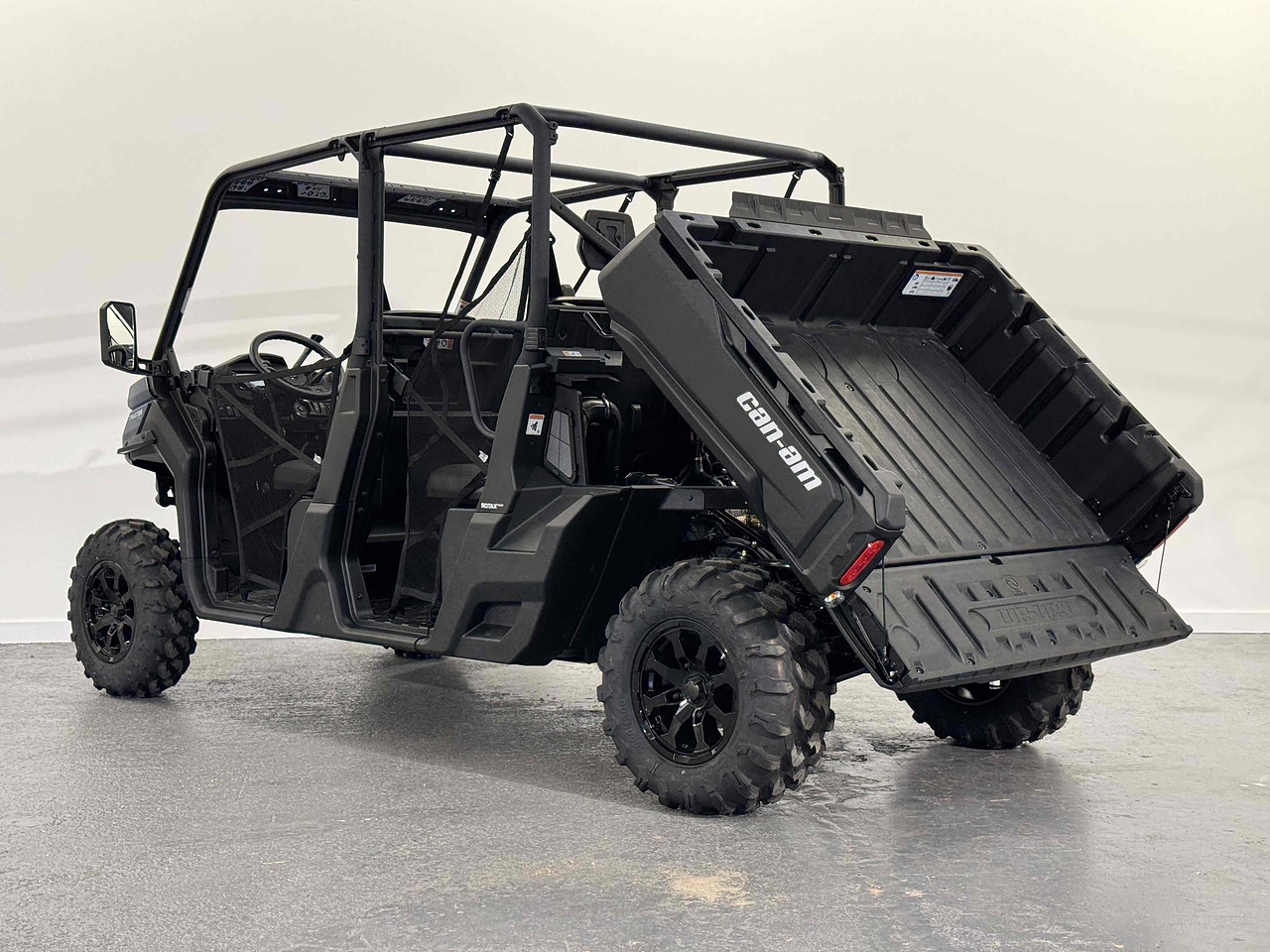

Cargo Box Dimensions: 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity: 1,000 lb (454 kg)
Tailgate Load Capacity: 250 lb (113.4 kg)
Storage Capacity Total: 11.1 gal (42.1 L)
Towing Capacity: 2,500 lb (1,134 kg)
Payload Capacity: 1,750 lb (793,8 kg)
Fuel Capacity: 10.6 gal (40 L)
Person Capacity: 6

FEATURES

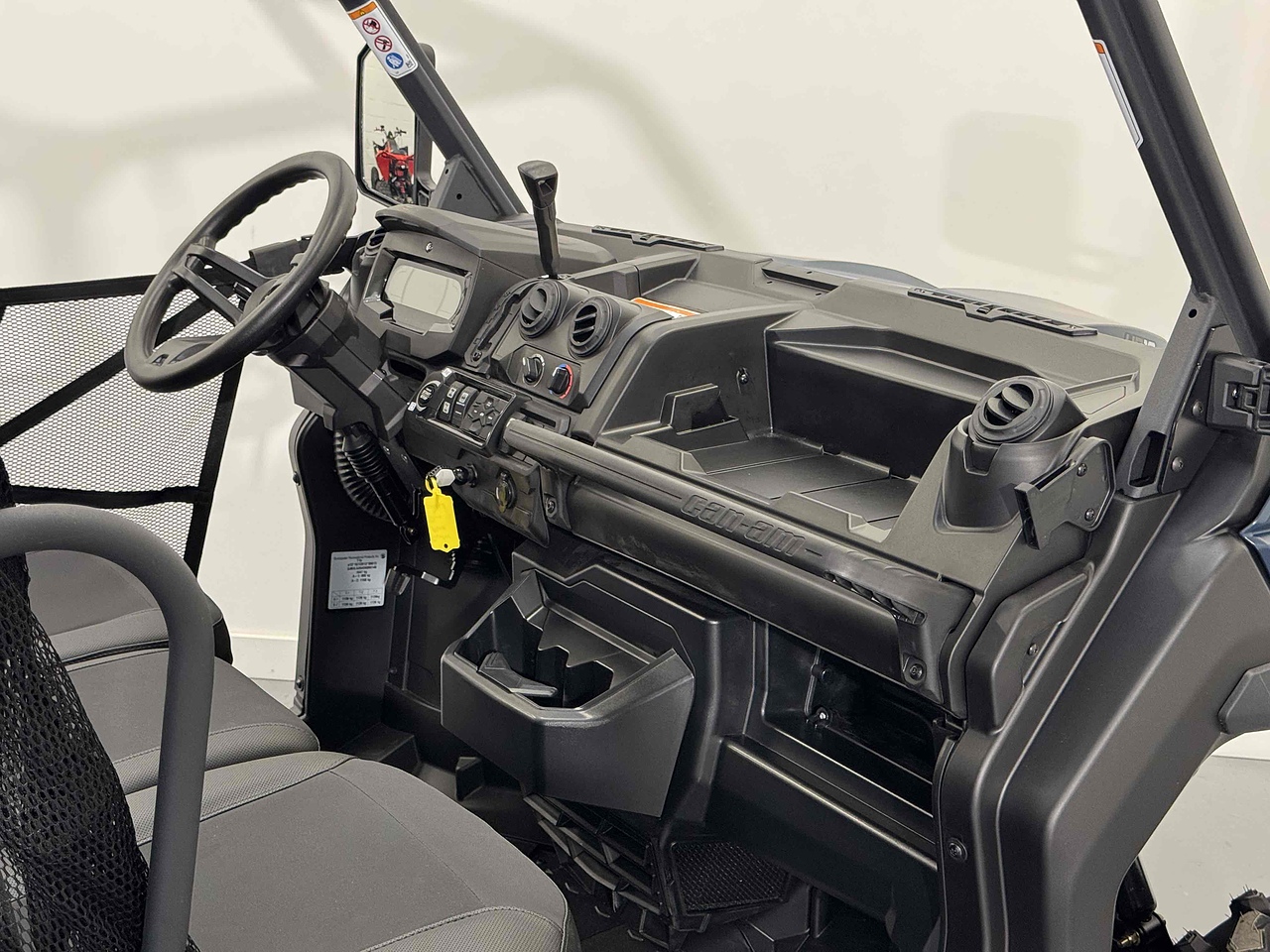

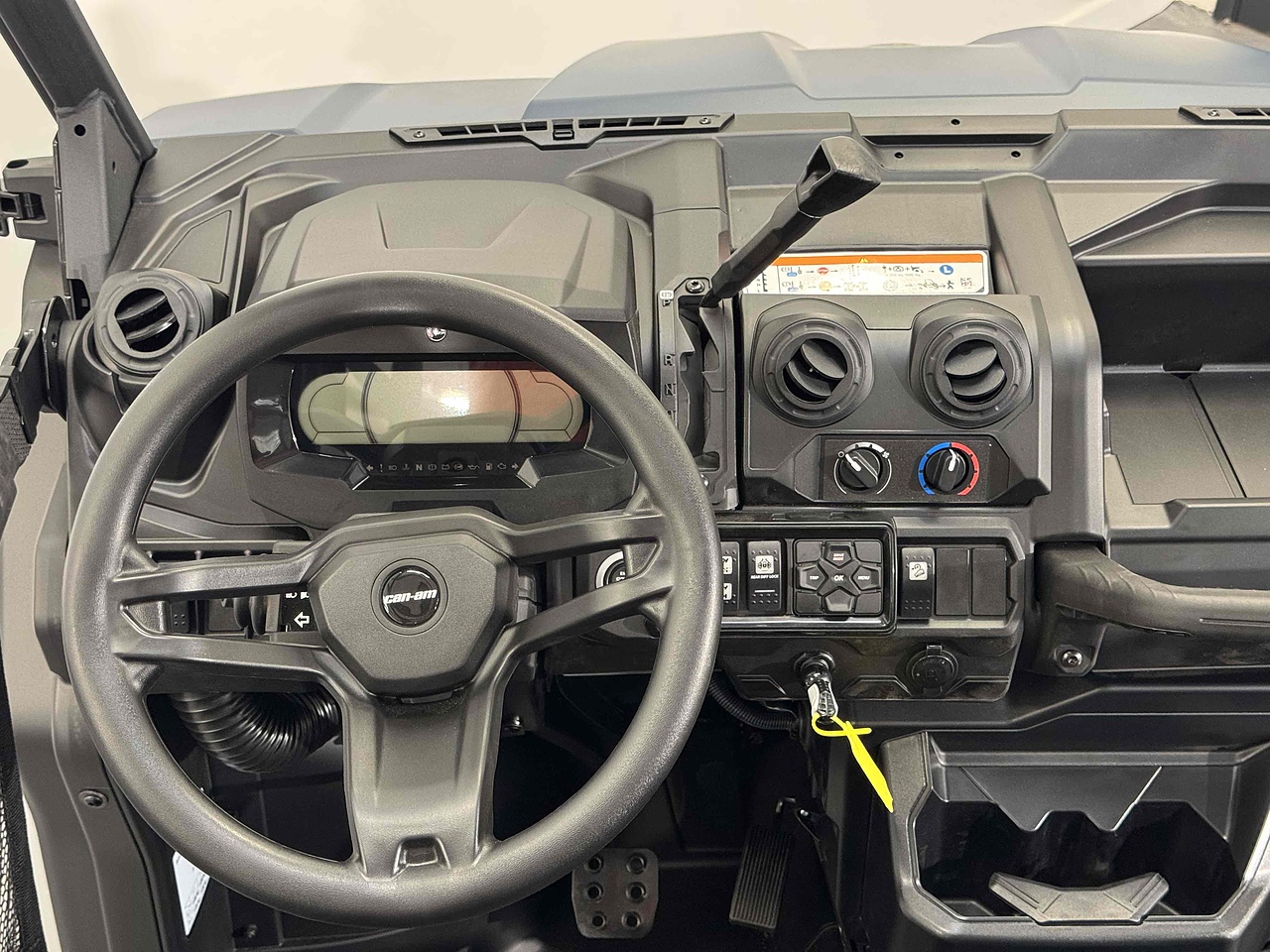

Gauge: 7.6 in. wide digital display with keypad
Battery: 12-V (30 amp/h)
Magneto: 650-W
Instrumentation: DC outlet (10-A)
Lighting: Front lighting output 140-W, LED tail lights
Winch: 4,500 lb (2,041 kg) winch with roller fairlead

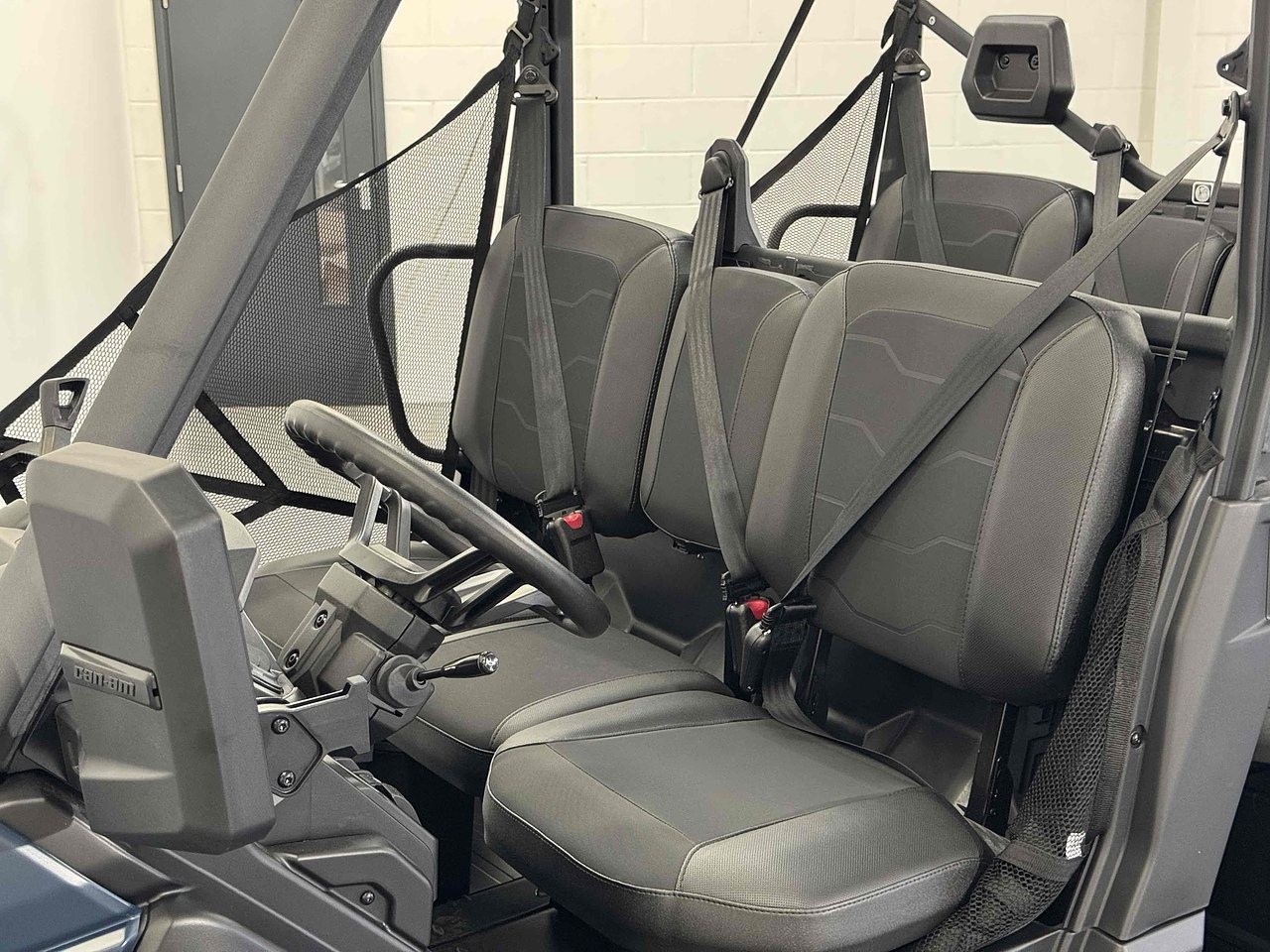

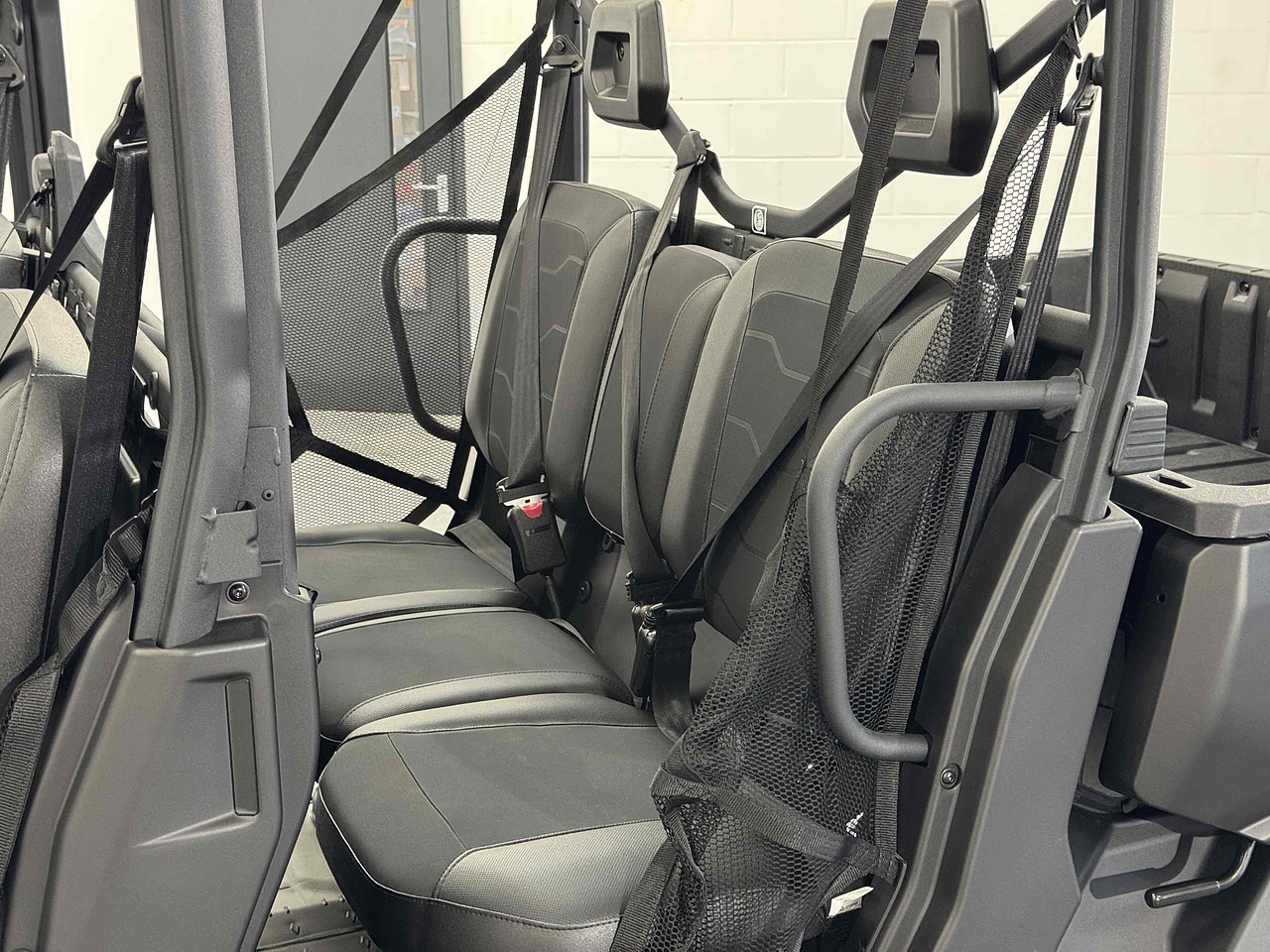

Seat: 60/40 VERSA-PRO bench seat with passenger seats flipping up, underside hooks, reinforced seat skin, adjustable driver seat
Steering Wheel: Adjustable tilt steering
Protection: Integrated front steel bumper, HMWPE full skid plate, Front fender extension

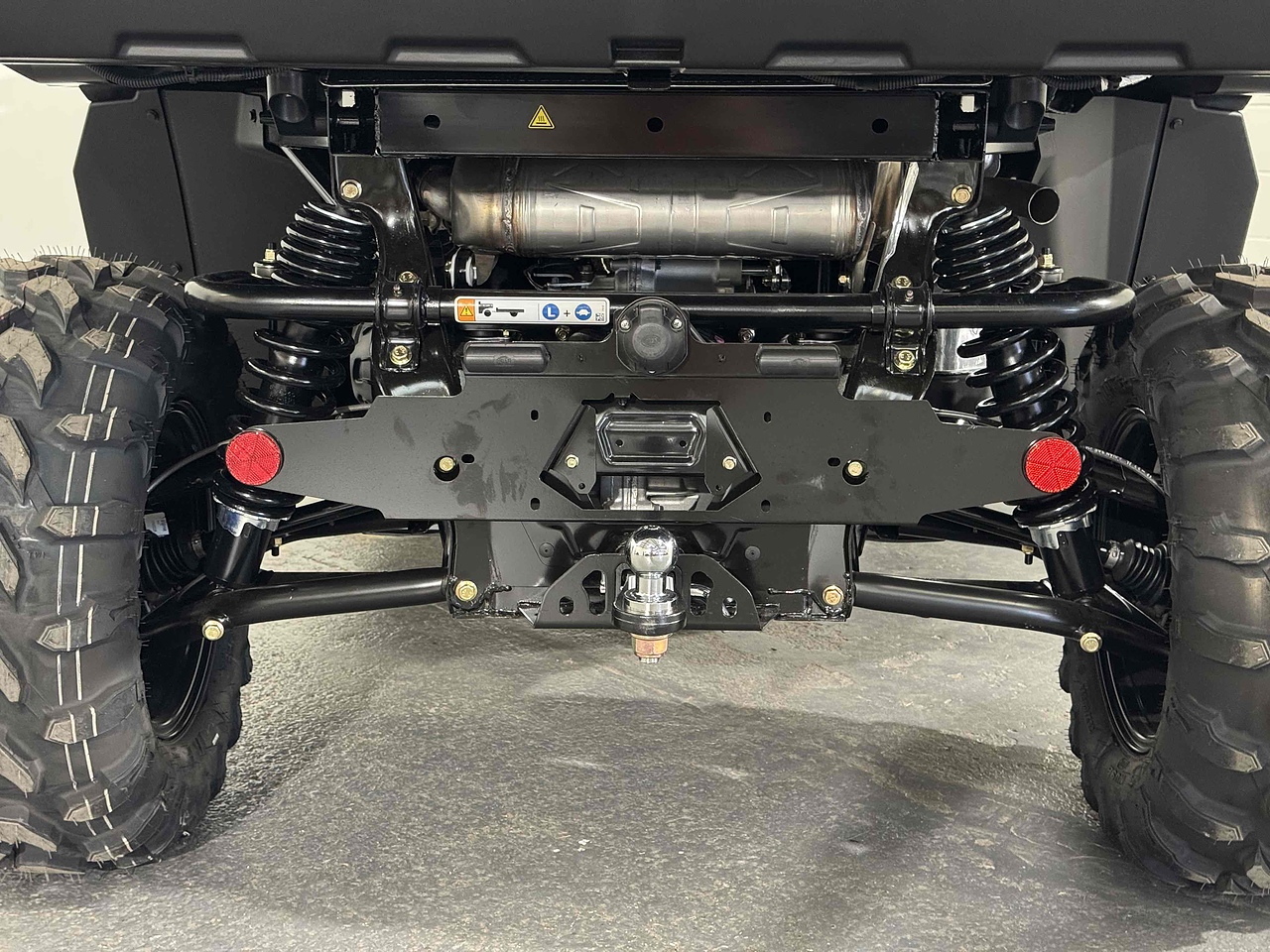

Hitch Type: 2 in. hitch receiver with rear hitch, tow ball and trailer connection

WARRANTY & EXTENDED SERVICE
Factory warranty: 2-year BRP limited warranty
